Description

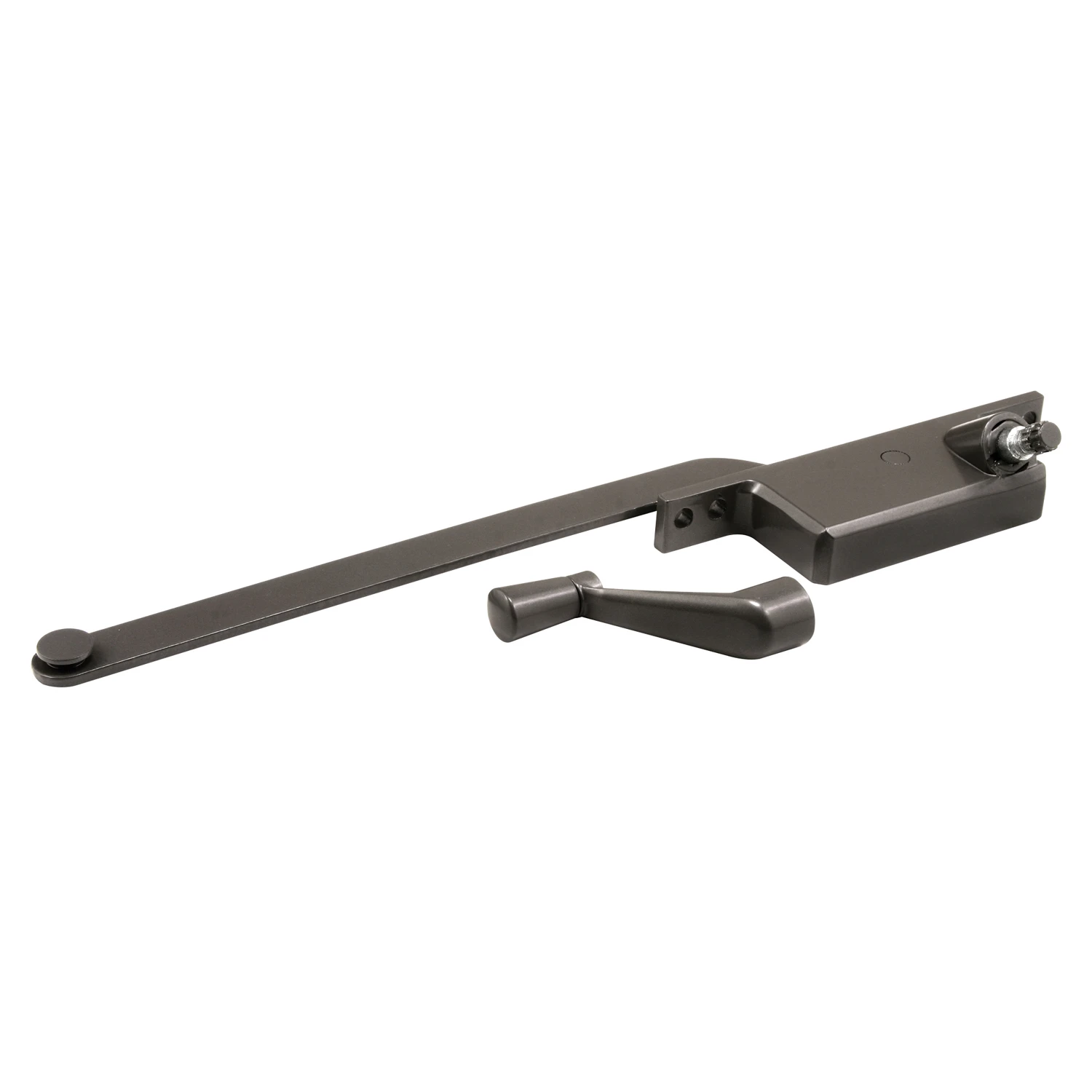

This casement window operator is a right-handed bronze square body type. It has a 8 in. steel arm with a round disc on the tip (some older styles had a small wheel instead of a disc). The disc slides in the Prime-Line part H 3529 casement track located on the bottom of the casement window. It is worm gear driven by a 3/8 in. crank spindle. The matching crank handle that fits onto the crank spindle and installation screws are included. Mounting holes available are 3-7/8 in. and 4-3/4 in. on center.
Right handed square body crank handle (viewed from inside looking out)
Mounting holes are 3-7/8 in. and 4-3/4 in. on center
Arm is 9 in. from middle of the guide button to the middle of the crank operator while closed
Heavy duty diecast zinc construction with a bronze finish
