Sliding Glass Door C-tab Steel Ball Bearing Roller Assembly, 1-1/4 In.

Description

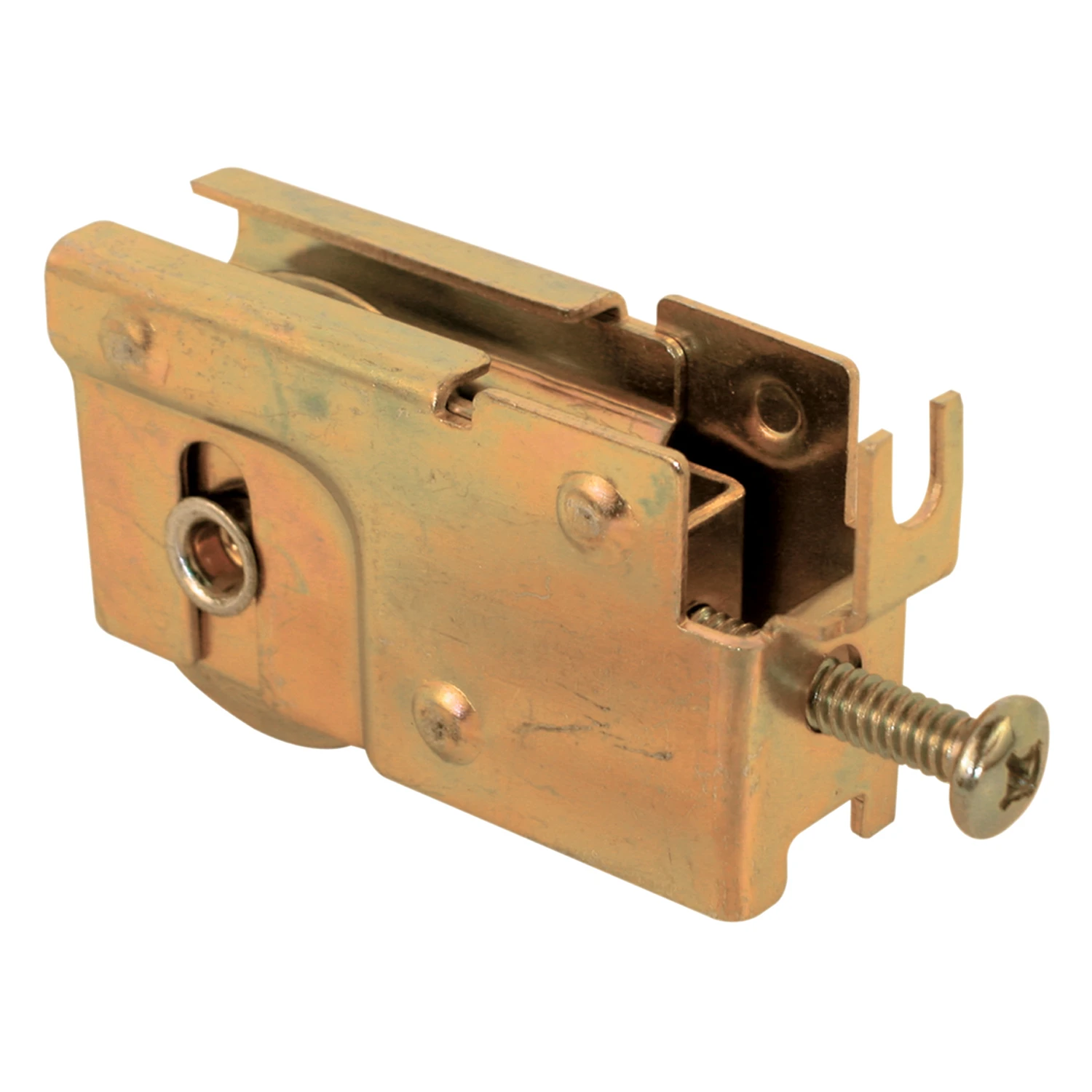

This is a C-tab patio door roller assembly with a 1-1/4 in. diameter concave, or grooved, steel ball bearing roller. As the C-shaped tab fits around the corner screw, it is captured by the side stile and bottom rail as the screw draws the two sides together. The housing is 23/32 in. wide and 1-3/16 in. tall with a dimple width of 7/8 in., and is most often used by Solar Industries and a variety of other patio door manufacturers.

Used by Solar Industries and several other metal framed patio door manufacturers

1-1/4 in. diameter roller

C-tab housing with rear adjust

Steel housing and ball bearing roller
